NOTE: This article is about M136 rocket launchers featured in the main ARMA games. For its U.S. military counterpart in ArmA 3's CSLA Iron Curtain Creator DLC, see M136 (CSLA).


The M136 is an 84 mm rocket launcher featured in both ArmA: Armed Assault and ArmA 2.


ArmA: Armed Assault[]

« The M136 is the successor of the M72 LAW in US Army service. The M136 is a recoilless weapon used primarily by infantry to defeat light armor. The 84mm High Explosive Anti-Tank (HEAT) warhead provides high penetration capability and lethal after-armor effects.
Library Description[1]
 »

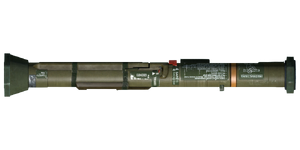

The M136 rocket launcher.
The M136 rocket launcher.

The M136 is used by both U.S. Army and RACS military forces in ArmA: Armed Assault.

Overview[]

The M136 is an unguided and reloadable, portable short-range rocket launcher.

It can load and fire 84 mm rockets fitted with high-explosive anti-tank (HEAT) warheads, and is accurate at ranges of up to 500 metres. The M136 lacks an optical sight and only features a simple ironsight to aim with.

The M136 is designed to be a lightweight, shoulder-carried anti-vehicle rocket launcher that is effective against both light and medium armoured vehicles.

If necessary, it can also be used to raze unreinforced structures and be employed against clumped-up infantry, though it is rather ineffective in the case of the latter due to the small blast radius of the HEAT warhead.[A1CfgA 1]

For all intents and purposes, it is essentially the American counterpart of the Russian-made RPG-7V. However, the M136 doesn't feature the ability to load more powerful munitions and is restricted to just one warhead type. It also isn't guided like the heavier Javelin Launcher, which makes it largely redundant for hitting anything beyond 500 metres.

Ironsights[]

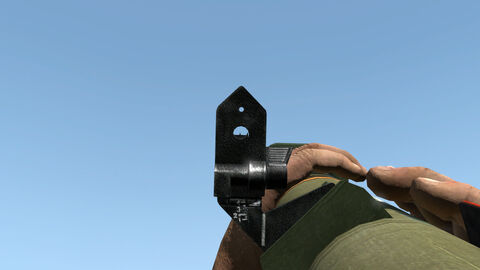

Arma1-m136-ironsight-overview

Recoil curves[]


{
    title: {
        text: 'launcherBase'
    },
    tooltip: {
        trigger: 'axis',
        axisPointer: {
            type: 'cross',
            label: {
                backgroundColor: '#824100'
            }
        }
    },
    legend: {
        data: ['Time Taken', 'Kickback', 'Kick Up']
    },
    toolbox: {
        feature: {
            saveAsImage: {}
        }
    },
    grid: {
        left: '3%',
        right: '4%',
        bottom: '3%',
        containLabel: true
    },
    xAxis: [
        {
            name: 'Duration',
            nameLocation: 'middle',
            type: 'category',
            boundaryGap: false,
            data: ['0', '0.01', '0.02']
        }
    ],
    yAxis: [
        {
            name: 'Amplitude',
            nameLocation: 'end',
            type: 'value'
        }
    ],
    series: [
        {
            name: 'Time Taken',
            type: 'line',
            stack: 'Total',
            label: {
                show: true,
                position: 'top'
            },
            areaStyle: {},
            emphasis: {
                focus: 'series'
            },
            data: [0, 0.01, 0.025],
            smooth: true
        },
        {
            name: 'Kickback',
            type: 'line',
            stack: 'Total',
            label: {
                show: true,
                position: 'top'
            },
            areaStyle: {},
            emphasis: {
                focus: 'series'
            },
            data: [0, 0, 0],
            smooth: true
        },
        {
            name: 'Kick Up',
            type: 'line',
            stack: 'Total',
            label: {
                show: true,
                position: 'top'
            },
            areaStyle: {},
            emphasis: {
                focus: 'series'
            },
            data: [0, 0.05, 0],
            smooth: true
        }
    ]
}
Charts/graphs are not available on mobile. Please switch to desktop mode in order to see them.


Munitions[]

Arma2-icon-m136ammo

M136 Rocket

The M136 can only load and fire one type of rocket.[A1CfgW 3] It requires two[A1CfgM 2] free inventory slots:

Parameter Value
Base damage value 400[A1CfgA 2]
Splash damage value 20[A1CfgA 3]
Warhead type Armour Piercing + High-Explosive
Blast radius (metres) 2[A1CfgA 1]
Launch velocity (m/s) 5[A1CfgM 3]
Maximum speed (m/s) 290[A1CfgA 4]

M136 rockets are always fired with an initial velocity of 5 m/s.[A1CfgM 3] After 0.1 seconds of being launched[A1CfgA 5], the rocket will only take 1 more second[A1CfgA 6] of flight time to attain a top speed of 290 m/s.[A1CfgA 4]

The rocket's warhead has a blast radius of 2 metres.[A1CfgA 1] It will automatically explode if it does not hit its target or come into contact with a hard surface after 6 seconds of flight time.[A1CfgA 7]

Trivia[]

  • The M136's tube in real-life is not reinforced to withstand the pressure from more than one launch. However, the in-game M136 is oddly depicted as a reloadable weapon.
  • Its hand animation is universally shared with every single launcher-type weapon in Armed Assault, even for launchers that are fitted with handgrips.
  • Prior to Patch 1.06, the M136's rocket was slightly more powerful, though its blast radius was significantly smaller with a radius of only 0.2 metres. The patch's release buffed the M136 by widening its blast radius from 0.2 metres up to 2 metres but also nerfed its base damage value from 470 to 400.[2]

Gallery[]

ArmA 2[]

« The M136 is the successor of the M72 LAW in US Army service. The M136 is a recoilless weapon used primarily by infantry to defeat light armor. The 84mm High Explosive Anti-Tank (HEAT) warhead provides high penetration capability and lethal after-armor effects.
Armoury Description[3][4]
 »
The M136 rocket launcher.
The M136 rocket launcher.

The M136 is used by both the U.S. Marines and U.S. Army forces in ArmA 2.

Overview[]

Returning from Armed Assault, the ArmA 2 M136 continues to serve as the standard-issue shoulder-fired rocket launcher of the U.S. military.

It still uses 84 mm rockets fitted with HEAT warheads. The M136 lacks any kind of sensors for tracking targets and only has an ironsight to fall back on for aiming. It cannot have its zeroing adjusted.

ArmA 2's M136 is once again designed to complement medium AT launchers like the USMC's SMAW or the U.S. Army's MAAWS. While it still has its uses against non-heavy armour vehicles, the M136 isn't nearly as helpful when it comes to tackling Main Battle Tanks compared to its Russian-made counterpart - especially when the latter is loaded with PG-7VR grenades.

Compared to its predecessor in Armed Assault, the M136's damage output has been sharply reduced and is also much less flexible due to the tiny blast radius of its warhead.[A2CfgA 1]

As before, its HEAT warhead isn't powerful enough to penetrate heavy armour[A2CfgA 2], although some damage can still be inflicted provided that it strikes the rear of the tank or turret where an MBT is most vulnerable. However, this is still inadvisable to attempt in practice and will almost always result in the M136's already limited supply of munitions being wasted, so it's better to leave such targets to heavy ATGM launchers like the FGM-148 Javelin instead.

To make matters worse, ArmA 2's M136 takes up 100% more inventory slots than its counterpart in Armed Assault (six slots as opposed to two).[A2CfgM 2] Whereas a single soldier in Armed Assault could feasibly carry up to two rockets at a time (one loaded into the launcher and one spare) and still retain enough space for their primary weapon, this is no longer possible in ArmA 2. Unless the user chooses to sacrifice all spare magazines for their primary weapon, it will not be possible to "reload" the M136 out in the field after they have fired their one and only rocket.

Ironsights[]

Arma2-m136-ironsight-overview

The M136's ironsights do not allow for zeroing to be manually adjusted.

Recoil curves[]


{
    title: {
        text: 'launcherBase'
    },
    tooltip: {
        trigger: 'axis',
        axisPointer: {
            type: 'cross',
            label: {
                backgroundColor: '#824100'
            }
        }
    },
    legend: {
        data: ['Time Taken', 'Kickback', 'Kick Up']
    },
    toolbox: {
        feature: {
            saveAsImage: {}
        }
    },
    grid: {
        left: '3%',
        right: '4%',
        bottom: '3%',
        containLabel: true
    },
    xAxis: [
        {
            name: 'Duration',
            nameLocation: 'middle',
            type: 'category',
            boundaryGap: false,
            data: ['0', '0.01', '0.02']
        }
    ],
    yAxis: [
        {
            name: 'Amplitude',
            nameLocation: 'end',
            type: 'value'
        }
    ],
    series: [
        {
            name: 'Time Taken',
            type: 'line',
            stack: 'Total',
            label: {
                show: true,
                position: 'top'
            },
            areaStyle: {},
            emphasis: {
                focus: 'series'
            },
            data: [0, 0.01, 0.025],
            smooth: true
        },
        {
            name: 'Kickback',
            type: 'line',
            stack: 'Total',
            label: {
                show: true,
                position: 'top'
            },
            areaStyle: {},
            emphasis: {
                focus: 'series'
            },
            data: [0, 0, 0],
            smooth: true
        },
        {
            name: 'Kick Up',
            type: 'line',
            stack: 'Total',
            label: {
                show: true,
                position: 'top'
            },
            areaStyle: {},
            emphasis: {
                focus: 'series'
            },
            data: [0, 0.05, 0],
            smooth: true
        }
    ]
}
Charts/graphs are not available on mobile. Please switch to desktop mode in order to see them.


Munitions[]

Arma2-icon-m136ammo

M136 Rocket

The M136 only supports one type of rocket.[A2CfgW 4] It requires six[A2CfgM 2] inventory slots to carry:

Parameter Value
Base damage value 335[A2CfgA 2]
Splash damage value 11[A2CfgA 3]
Warhead type High-Explosive Anti-Tank
Blast radius (metres) 1.1[A2CfgA 1]
Launch velocity (m/s) 285[A2CfgM 3]
Maximum speed (m/s) 290[A2CfgA 4]

M136 rockets are always fired with an initial velocity of 285 m/s.[A2CfgM 3] After 0.1 seconds of being launched[A2CfgA 5], the rocket will only need 1 additional second[A2CfgA 6] of flight time to attain a maximum speed of 290 m/s.[A2CfgA 4]

The rocket's warhead has a blast radius of 1.1 metres.[A2CfgA 1] It will automatically explode if it does not hit its target or come into contact with a hard surface after 6 seconds of flight time.[A2CfgA 7]

Trivia[]

  • Just like in Armed Assault, ArmA 2's M136s are unrealistically depicted as reloadable weapons.
  • Similarly to the Russian RPG-18, the M136's rockets occupy a full six slots of the player's inventory despite the rockets being smaller (and lighter) than ATGMs.
    • This was presumably done as a stand-in for the M136 being a disposable weapon in real-life, as unless the player was willing to sacrifice all ammunition for their primary weapon (by carrying two rockets) the M136 would indeed become a single-shot weapon.
  • Prior to the latest Steam version patches (as part of the Community Configuration Project), the M136's rockets would emit an excessive number of smoke particles that could cause the game to lag if multiple launchers were fired simultaneously.[5]

Gallery[]
