M47 Dragon

Sign in to edit

NOTE: This article is about the M47 Dragon ATGM in ArmA 2's Operation Arrowhead expansion pack. For its counterpart in ArmA 3's CSLA Iron Curtain Creator DLC, see M47 Dragon (CSLA).


« The M47 Dragon is an older American shoulder-fired, man-portable anti-tank missile system, replaced by FGM-148 Javelin some time ago. M47 used a wire-guidance system in concert with a high explosive anti-tank warhead, which can penetrate armor of earlier Soviet main battle tanks.
Armoury Description[1]
 »
The M47 Dragon 140 mm missile launcher.
The M47 Dragon 140 mm missile launcher.

The M47 Dragon is a 140 mm anti-tank missile launcher used exclusively by Takistani anti-government rebels in ArmA 2. It was added with the release of the Operation Arrowhead expansion pack.

Overview[]

This is a premium asset that requires ownership of the Operation Arrowhead expansion pack.

The Dragon is a portable wire-guided, anti-tank guided missile launcher.

It can load and fire missiles fitted with 140 mm high-explosive anti-tank (HEAT) warheads. Using wire-guidance, it is capable of hitting ground vehicles at distances of up to 1,500 metres.[CfgAm 1] The launcher is fitted with an optical sight that can toggle between either normal day or night vision modes.[CfgWp 4]

Role-wise, the Dragon is comparable to the U.S. Javelin or Russian 9K115 ATGM launchers. Like both platforms, the Dragon is a shoulder-launched ATGM system that is designed to take out Main Battle Tanks and other armoured vehicles alike from a safe distance.

In spite of this however, it is nonetheless an extremely weak weapon for an ATGM launcher. While heavy damage is guaranteed for older Soviet-era tanks such as the T-72 or T-55, the same cannot be said for the latest Russian-made tanks like the T-90 or the American M1A2. Both will easily shrug off the Dragon's HEAT warhead unless the missile strikes a vulnerable component like the engine or tracks.[CfgAm 2]

Given that its missiles weigh the same as the Javelin's (up to six slots per missile)[CfgMa 2] but inflicts reduced damage, lacks autonomous guidance, and has a much shorter operating range, the Dragon is quite redundant in the face of modern ATGM systems. Unless absolutely necessary, the Dragon should be avoided in favour of better launchers.

Optics[]

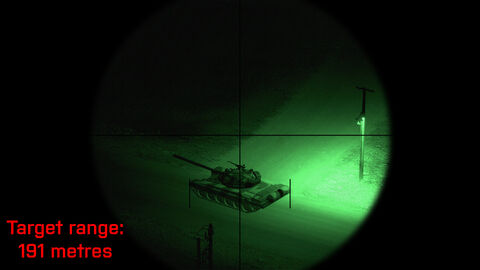

Arma2-dragon-ironsight-overview

The M47 Dragon's optical sight cannot be manually zeroed. It has the ability to switch between normal day or night vision modes.[CfgWp 4] Its magnification can be adjusted between a minimum setting of 0.35x[CfgWp 5][Formula 1] or up to a maximum of 9x[CfgWp 6][Formula 2], though it defaults to using a setting of 4x zoom if left unchanged.[CfgWp 7][Formula 3] The reticle's markings are not illuminated and are only coloured in black.

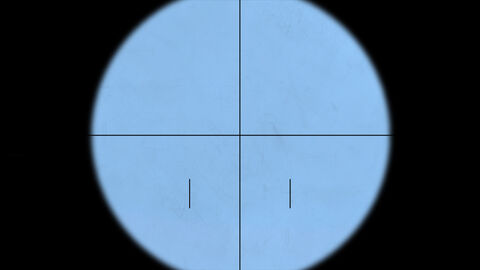

Arma2-dragon-ironsight-specifics

The sight's reticle features a crosshair with stadia lines that can be used to determine if a target vehicle is within attacking range of the user. To maximise the chances of landing a successful hit, adjust the sight's magnification until the target vehicle's silhouette touches the stadia lines on both sides. Shortly after firing, reposition the centre of the reticle's crosshairs onto the target.

Arma2-dragon-ironsight-specifics2

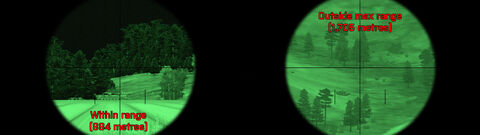

Left: Estimating target's range with the half-stadia method. The target is still within range.
Right: Target is out of range.

Note that it is possible to estimate the target's range with only one half of the stadia. If the target's silhouette does not touch the stadia on one side and the centre bar of the crosshair, then it is considered to be outside the launcher's maximum engagement range.

Recoil curves[]


{
    title: {
        text: 'launcherBase'
    },
    tooltip: {
        trigger: 'axis',
        axisPointer: {
            type: 'cross',
            label: {
                backgroundColor: '#824100'
            }
        }
    },
    legend: {
        data: ['Time Taken', 'Kickback', 'Kick Up']
    },
    toolbox: {
        feature: {
            saveAsImage: {}
        }
    },
    grid: {
        left: '3%',
        right: '4%',
        bottom: '3%',
        containLabel: true
    },
    xAxis: [
        {
            name: 'Duration',
            nameLocation: 'middle',
            type: 'category',
            boundaryGap: false,
            data: ['0', '0.01', '0.02']
        }
    ],
    yAxis: [
        {
            name: 'Amplitude',
            nameLocation: 'end',
            type: 'value'
        }
    ],
    series: [
        {
            name: 'Time Taken',
            type: 'line',
            stack: 'Total',
            label: {
                show: true,
                position: 'top'
            },
            areaStyle: {},
            emphasis: {
                focus: 'series'
            },
            data: [0, 0.01, 0.025],
            smooth: true
        },
        {
            name: 'Kickback',
            type: 'line',
            stack: 'Total',
            label: {
                show: true,
                position: 'top'
            },
            areaStyle: {},
            emphasis: {
                focus: 'series'
            },
            data: [0, 0, 0],
            smooth: true
        },
        {
            name: 'Kick Up',
            type: 'line',
            stack: 'Total',
            label: {
                show: true,
                position: 'top'
            },
            areaStyle: {},
            emphasis: {
                focus: 'series'
            },
            data: [0, 0.05, 0],
            smooth: true
        }
    ]
}
Charts/graphs are not available on mobile. Please switch to desktop mode in order to see them.


Munitions[]

Arma1-ammunition-javelin

Dragon Missile

The Dragon only supports loading one type of missile.[CfgWp 8] It requires six[CfgMa 2] inventory slots to carry:

Parameter Value
Base damage value 360[CfgAm 2]
Splash damage value 9[CfgAm 3]
Warhead type High-Explosive Anti-Tank
Blast radius (metres) 1[CfgAm 4]
Launch velocity (m/s) 20[CfgMa 3]
Maximum speed (m/s) 200[CfgAm 5]

The Dragon does not have autonomous guidance and is exclusively guided via SACLOS.[CfgAm 6] It can be controlled up to a maximum distance of 1,500 metres.[CfgAm 1]

Dragon missiles are always fired with an initial velocity of 20 m/s.[CfgMa 3] 0.151 seconds after launch[CfgAm 7], the missile's motor will ignite and need only 1.5 seconds[CfgAm 8] of flight time to attain a top speed of 200 m/s.[CfgAm 5]

The missile's warhead has a blast radius of only 1 metre.[CfgAm 4] The missile only has enough fuel for 20 seconds of flight time and will automatically explode if the target is not hit within this timeframe.[CfgAm 9]
